Alattice Electronics Projects

Desk revamped

linear fan

3D print body for AC linear fan for summer days where it's hot, but not enough for a large fan

mini meds shelf kitchen

Kobo solar case

amp enclosure

3rd times the charm, right? previous versions: [https://trello.com/c/zWH74azr](https://trello.com/c/zWH74azr "smartCard-inline") [https://trello.com/c/jZ3fx0Ax](https://trello.com/c/jZ3fx0Ax "smartCard-inline")

Desk autolight

G10 print sheet

headphone holder

Tangent Headphone holder for boom arm

Drybox

A dry box to keep all the opened filament

portable monitor v2

battery mode: \- off 11.27 0.14A 1.55W \- idle 11.3V 0.142A 1.6W \- on 11.3V 0.777A 8.8W

pc monitor mount

Lavalier Mic Case

The original case was bulky, disorganized and smelled of chemicals. Let’s print a more compact case!

Washroom mirror vanity lighting

Add sun-mimicing lights to washroom mirrors with white & yellow

Multi lab bench PSU

Several variable voltage/current PSU modules & voltmeter/ammeter in standard bench rack size Reverse polarity switch I/O SW Individual knobs for CV CC ≥1 usb 1 usb-c pd >20w

Multi lab ammeter voltmeter

[https://www.thingiverse.com/thing:6536206](https://www.thingiverse.com/thing:6536206 "smartCard-inline")

Secret battery compartment

Drawer custom trays

TWS speakers

lab ventilation

3D printed ventilation for 3D printing ASA and soldering fumes

Phone case

3D printed phone case 😁

Car clip

clip for car

3D printer

Research for 3D printers Key points: - enclosed for printing in colder environments - coreXY for faster stable printing - Resin or FDM? Higher quality smaller print size, costlier prints vs larger cheaper prints - customer support - price (FDM bedslinger is cheaper) QiDi X-plus 3 COREXY BED SLINGER Elegoo Neptune 4 Prusa mk4 sovol sv07 plus ankermake M5C RESIN Mars 3 elegoo jupiter anycubic photon elegoo saturn ELIMINATED bambulab p1p p1s bambulab X1 carbon voron 2 anycubic kobra 2 FILIMENTS PLA PETG: more elastic, lower impact resistance, no UV resistance Waterproof Low print temp (260C, warm chamber) ABS: toxic fumes, more prone to cracking in large prints Needs heated chamber (90-100C) Not waterproof ASA: Higher heat res & UV res than ABS Smooths better with acetone Better than ABS Needs heated chamber (90-100C) Waterproof Costs more Prone to warping, cracking, shrinking Toxic fume

NAS

Home NAS, for storage, self-hosted VPN (for remote file access, remote desktop), custom VM, and more?

portaPSU

Portable power supply for on-the-go versatile testing

convert thermometer to AA

Aesthetic lightbulb v1

Vintage style battery powered light bulb 💡🙂

PC case monitor

Power switch v0

Switch box for controlling home lab equipment & e-stop

High beam flashlight v1

safety in a box (GFCI)

GFCI protected socket box with overcurrent protection, live AND neutral isolation flip switch (for this garbo house with reverse wiring and ungrounded sockets 😡) and a live wire loop to measure current draw

Portable monitor v1

[https://latticeworld.wordpress.com/2018/04/29/up-cycled-portable-monitor/](https://latticeworld.wordpress.com/2018/04/29/up-cycled-portable-monitor/ "smartCard-inline")

Peltier cooler

Experiment for a portable cooling unit. Ended up consuming too much power and had little cooling gains.

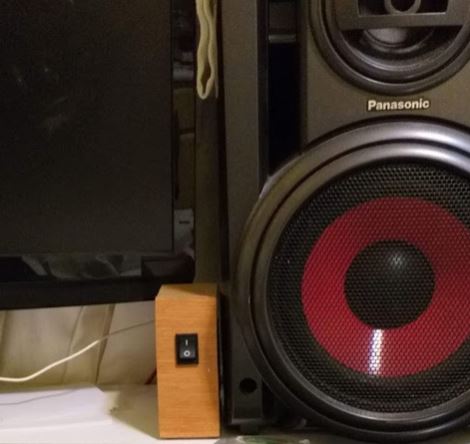

amplifier

Strobe curtains

[https://latticeworld.wordpress.com/2017/12/06/curtain-lights/](https://latticeworld.wordpress.com/2017/12/06/curtain-lights/ "‌")

night light

Arduino Uno case

laptop fan

Peripheral display

Serial Parallel BMS

Battery design for NiMH batteries to charge in parallel (1.5v) and operate in series (1.5*n)

Battery bank (2013)

Pocket multifunction clock

A cool multifunctional clock with timer, countdown, temperature and calendar packed tightly, didn't survive the test of time before I could fix it

First solder project

First solder project of pocket radio with led added
